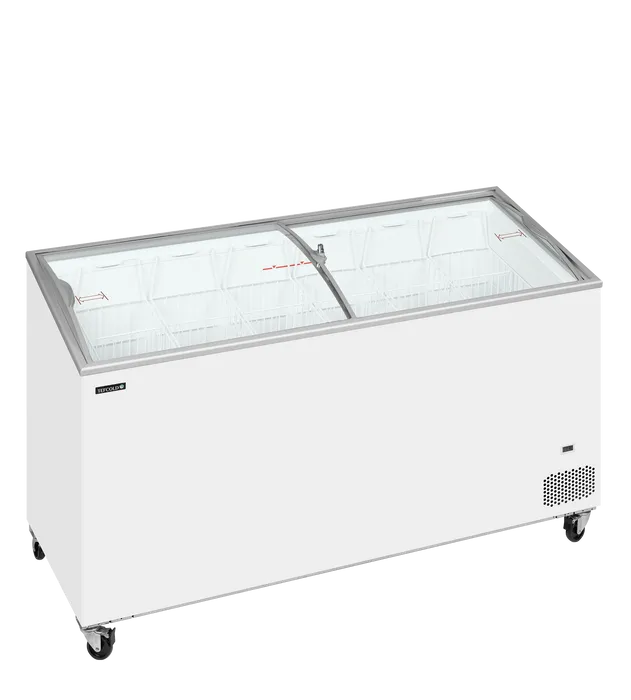

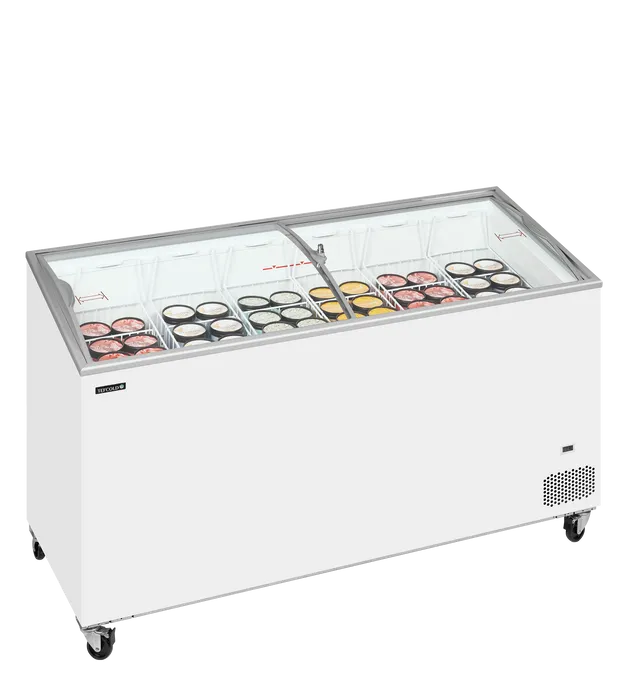

Sliding Curved Glass Lid Chest Freezer
IC502SCEB
Item no.:71478(Substitution for 48844 IC501SCEB)
Brand:TEFCOLD
- Sloping display for excellent presentation
- Curved sliding lids with lock
- Includes full set of baskets
- Ideal for branding
- LED interior light
- Digital thermometer
- Castors with brake
- Climate class 5 for high performance in warm surroundings
- Next day delivery available on product
- Unpack & Position£ 37.00
- Remove & Dispose£ 72.00
Check Delivery Options and Services
Technical specifications
Measures and Content
- Gross / Net Weight85 / 72 kg
- Gross / Net Volume427 / 398 l
- Temperature Range-24 to -14 °C
- Climate Class5
Design and Material
- Exterior FinishWhite
- Interior FinishWhite painted steel
- Castors4 wheels, 2 with brake
- Lock
- Interior LightLED
- Lid Number & Type2 curved sliding temp. glass lids
- Basket Number & Type6 Wire baskets, white
Cooling and Functions
- Type of ControllerMechanical
- Type of CoolingStatic
- Type of DefrostManual
- RefrigerantR290
- Refrigerant Charge110 g
- Thermometer
Power and Consumption
- Energy ClassD
- EPREL No2580065
- Energy Consumption2.622 kWh/24h
- Annual Energy Consumption957.03 kWh/year
- Input Power265 W
- Voltage / Frequency220-240/50 V/Hz
- Noise Level45 dB(A)
Dimensions
- 40ft Container Load 42 pcs
- GTIN / EAN5708181760557
- Product Group - Delivery servicesGroup 2
- External Dimension (WxDxH)1550 x 615 x 949 mm
- Internal Dimension (WxDxH)1420 x 495 x 710 mm
- Packed Dimension (WxDxH)1640 x 750 x 1010 mm
Downloads
Description
Spare parts
- 02Item no. 55170Bottom Glass Lid With Frame
- 03Item no. 55171Upper Glass Lid With Frame
- 04
Item no. 10720Lock With Keys - 06Item no. 72863Compressor NVT70FSC R290M
- 09Item no. 54922Fan Motor
- 10
Item no. 13426Evaporator Fan Blade 190/28° - 11Item no. 34974Fan Motor Foot Sheet H=55mm
- 12Item no. 55072Condenser
- 13Item no. 13611Cable Clamp For Louvred Plate
- 14
Item no. 11161Louvred Plate Back No/Screws - 15
Item no. 11553Inner Drain Plug - 16
Item no. 11465Drain Plug Outer White - 17Item no. 11164Louvred Plate Side 505x250
- 18Item no. 38818Dryer
- 19
Item no. 11212Plastic Strip For Alu Frame - 20
Item no. 14000Thermostat K50B-S3564 Ranco - 21
Item no. 13793Thermometer Digital White - 22Item no. 15772Ice Scraper
- 23
Item no. 14666Wheel With Brake (70*23*10) - 24
Item no. 14678Wheel Without Brake - 25
Item no. 14734Wire Basket For Div. 218 mm. - 27Item no. 72580Power Supply 12V 18W
- 28Item no. 72876LED Plug Left
- 29Item no. 72879LED Plug Right
- 31
Item no. 13737Light Switch - 32Item no. 15494Connector For LED Wires
- 33Item no. 72868LED Glass Edge Lath 1310mm
- 34Item no. 728721300MM UP4 LD3 6500K 6,5LM 100A 5,93W
- 36
Item no. 14652U-Profile For Wheel
