Baskets
Lock

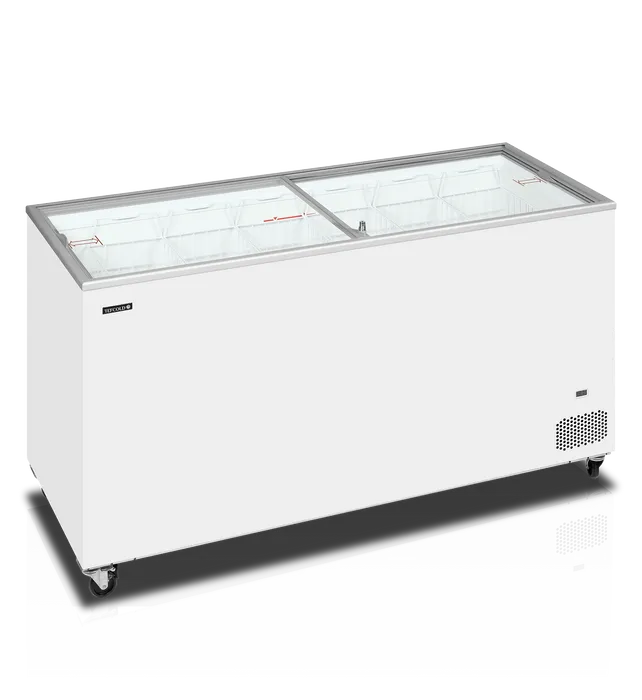

Ice Cream Freezer
IC502SC
Item no.:71468(Substitution for 49768 IC501SC)
Brand:TEFCOLD
- Flat sliding glass lids with lock
- Great branding possibilities
- Includes full set of baskets
- LED interior light
- Digital thermometer
- Castors with brake
- Climate class 5 for high performance in warm surroundings
- Next day delivery available on product
- Unpack & Position£ 40.00
- Remove & Dispose£ 130.00
Check Delivery Options and Services
Technical specifications
Measures and Content
- Gross / Net Weight90 / 72 kg
- Gross / Net Volume491 / 430 l
- Temperature Range-24 to -14 °C
- Climate Class5
Design and Material
- Exterior FinishWhite
- Interior FinishWhite painted steel
- Castors4 wheels, 2 with brake
- Lock
- Interior LightLED
- Lid Number & Type2 flat sliding temp. glass lids
- Basket Number & Type6 Wire baskets, white
Cooling and Functions
- Type of ControllerMechanical
- Type of CoolingStatic
- Type of DefrostManual
- RefrigerantR290
- Refrigerant Charge110 g
- Thermometer
Power and Consumption
- Energy ClassD
- EPREL No2579996
- Energy Consumption2.809 kWh/24h
- Annual Energy Consumption1025.285 kWh/year
- Input Power350 W
- Voltage / Frequency220-240/50 V/Hz
- Noise Level45 dB(A)
Dimensions
- 40ft Container Load 42 pcs
- GTIN / EAN5708181760540
- Product Group - Delivery servicesGroup 3
- External Dimension (WxDxH)1550 x 630 x 892 mm
- Internal Dimension (WxDxH)1430 x 510 x 655 mm
- Packed Dimension (WxDxH)1640 x 750 x 940 mm
Downloads
Description
Spare parts
- 01Item no. 15772Ice Scraper
- 02Item no. 13611Cable Clamp For Louvred Plate
- 03
Item no. 11212Plastic Strip For Alu Frame - 04
Item no. 13793Thermometer Digital White - 05
Item no. 11161Louvred Plate Back No/Screws - 06Item no. 11164Louvred Plate Side 505x250
- 08
Item no. 10720Lock With Keys - 09
Item no. 13044Bottom Glass Lid With Frame - 10
Item no. 13194Upper Lid - 11
Item no. 14733Wire Basket For Div 218 mm - 13
Item no. 11465Drain Plug Outer White - 14
Item no. 11553Inner Drain Plug - 15
Item no. 14666Wheel With Brake (70*23*10) - 16
Item no. 14678Wheel Without Brake - 17
Item no. 14000Thermostat K50B-S3564 Ranco - 20Item no. 38818Dryer
- 21Item no. 34974Fan Motor Foot Sheet H=55mm
- 22
Item no. 13426Evaporator Fan Blade 190/28° - 23Item no. 54922Fan Motor
- 24Item no. 55072Condenser
- 25Item no. 11709Compressor NUT70CAB R290
- 27Item no. 72580Power Supply 12V 18W
- 28Item no. 72876LED Plug Left
- 29Item no. 72879LED Plug Right
- 30Item no. 728721300MM UP4 LD3 6500K 6,5LM 100A 5,93W
- 31
Item no. 13737Light Switch - 32Item no. 15494Connector For LED Wires
- 36
Item no. 14652U-Profile For Wheel
