Scooping basket
Scoop wash option
Scoop Ice Cream Freezer
IC202SC-SO
Item no.:71496(Substitution for 69859 IC201SCE + CANOPY)
Brand:TEFCOLD
- Curved glass canopy
- LED interior light
- Great branding possibilities
- Castors with brake
- Flat sliding glass lids with lock
- Accepts plastic napoli size tubs. Stainless napoli pans not required
- Storage under baskets
- Climate class 5 for high performance in warm surroundings
- Next day delivery available on product
- Unpack & Position£ 37.00
- Remove & Dispose£ 72.00
Check Delivery Options and Services
Technical specifications
Measures and Content
- Gross / Net Weight92 / 84 kg
- Gross / Net Volume191 / 155 l
- Temperature Range-24 to -14 °C
- Climate Class5

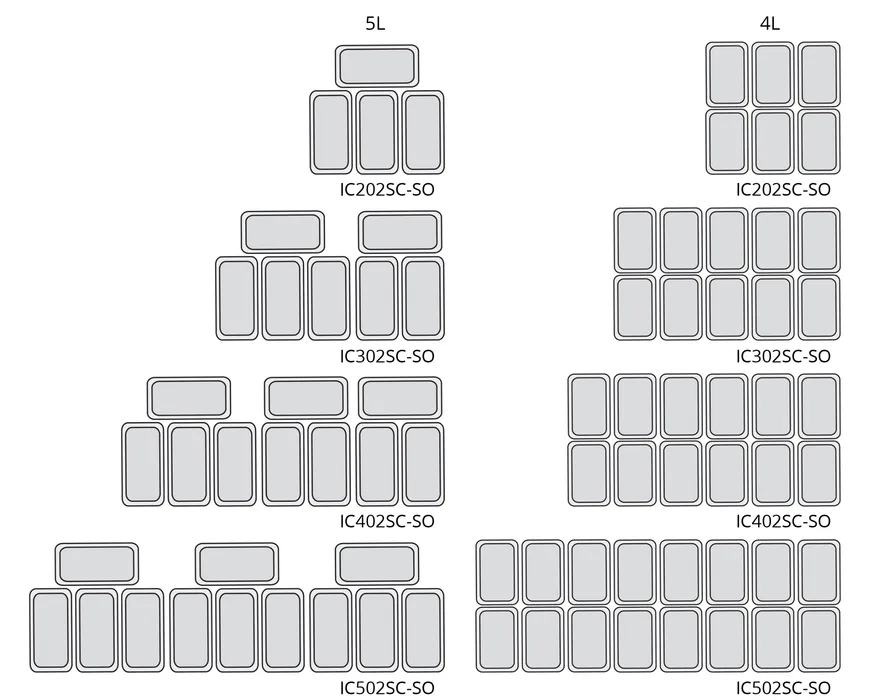

- 4 Plastic Tubs (5L) / 6 Plastic Tubs (4L)
- 7 Plastic Tubs (5L) / 7 Plastic Tubs (4L)
Design and Material
- Exterior FinishWhite
- Interior FinishWhite painted steel
- Castors4 wheels, 2 with brake
- Lock
- Interior LightLED
Cooling and Functions
- Type of ControllerMechanical
- Type of CoolingStatic
- Type of DefrostManual
- RefrigerantR600a
- Refrigerant Charge55 g
- Thermometer
Power and Consumption
- Energy ClassD
- EPREL No2579910
- Energy Consumption1.489 kWh/24h
- Annual Energy Consumption543.485 kWh/year
- EEI39.9 %
- Input Power200 W
- Voltage / Frequency220-240/50 V/Hz
- Noise Level45 dB(A)
Dimensions
- 40ft Container Load 92 pcs
- GTIN / EAN5708181760731
- Product Group - Delivery servicesGroup 2
- External Dimension (WxDxH)720 x 630 x 1250 mm
- Internal Dimension (WxDxH)600 x 510 x 655 mm
- Packed Dimension (WxDxH)800 x 750 x 1130 mm
Downloads
Description
Spare parts
- 02
Item no. 13038Bottom Glass Lid With Frame - 03
Item no. 13188Upper Glass Lid With Frame - 04
Item no. 10720Lock With Keys - 06Item no. 72628Compressor SZ110H1H R600
- 07Item no. 54922Fan Motor
- 08Item no. 34974Fan Motor Foot Sheet H=55mm
- 09
Item no. 13426Evaporator Fan Blade 190/28° - 12Item no. 54350Condenser
- 13Item no. 11164Louvred Plate Side 505x250
- 14
Item no. 11465Drain Plug Outer White - 15
Item no. 11553Inner Drain Plug - 16Item no. 38818Dryer
- 17
Item no. 13793Thermometer Digital White - 18
Item no. 14000Thermostat K50B-S3564 Ranco - 19Item no. 15772Ice Scraper
- 21
Item no. 14666Wheel With Brake (70*23*10) - 22
Item no. 14678Wheel Without Brake - 24Item no. 72869470MM UP4 LD3 6500K 6,5LM 100A 2,07W
- 25Item no. 72876LED Plug Left
- 26Item no. 72879LED Plug Right
- 27Item no. 72580Power Supply 12V 18W
- 28
Item no. 13737Light Switch - 29Item no. 15494Connector For LED Wires
- 31
Item no. 14652U-Profile For Wheel - 32
Item no. 11161Louvred Plate Back No/Screws - 33
Item no. 11212Plastic Strip For Alu Frame - 34Item no. 13611Cable Clamp For Louvred Plate
