Strong handle
Digital controller

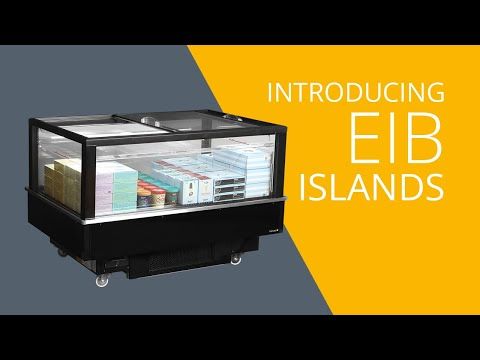

Black impulse cooler/freezer
EIB-D1020-B1
Item no.: 69336
Brand: TEFCOLD
- Easily switchable between cooler and freezer
- Temperature Class 3M1/3L1
- Glass sides for better presentation of products
- Ventilated cooling
- LED interior light
- Sliding glass lids
- Ticket strip included
- Controller with Bluetooth and NFC connectivity
- HACCP compliant data export
- Stainless steel bumper bars on all four sides
- Castors, 2 lockable
- Next day delivery available on product
- Unpack & Position£ 50.00
- Remove & Dispose£ 162.00
Check Delivery Options and Services
Technical specifications
Measures and Content
- Gross / Net Weight415 / 380 kg
- Insulation Density40 kg/m³
- Total Display Area2.93 m²
- Temperature Range-18 to +5 °C
- Climate Class3
- Gross / Net Volume640 / 427 l
Design and Material
- Exterior FinishBlack RAL9005
- Interior FinishBlack (RAL9005)
- Interior LightLED Horizontal
- CastorsWheels
- Lid Number & Type2 flat sliding glass lid
Cooling and Functions
- Type of ControllerElectronic
- Type of CoolingVentilated
- Type of DefrostAutomatic, hot gas
- Refrigerant Charge149 g
- RefrigerantR290
- Thermometer
Power and Consumption
- Energy ClassC
- EPREL No2462330
- Max Ambient25°C at 60% RH
- Annual Energy Consumption4526 kWh/year
- Energy Consumption12.4 kWh/24h
- EEI32.29 %
- Input Power1649 W
- Voltage / Frequency220-240/50 V/Hz
- Noise Level54 dB(A)
Dimensions
- External Dimension (WxDxH)2012 x 1010 x 975 mm
- Packed Dimension (WxDxH)2070 x 1070 x 1155 mm
- 40ft Container Load 22 pcs
- GTIN / EAN5708181756123
- Product Group - Delivery servicesGroup 4
- Internal Dimension (WxDxH)1860 x 790 x 300 mm
Downloads
Description
Spare parts
- 1.1Item no. 70071Castor with brake
- 1.2Item no. 70072Castor without brake
- 1.3Item no. 70128Bottom plates
- 2.1Item no. 70129Front glass
- 2.2Item no. 70074Side glass
- 2.3Item no. 70130Sliding cover rim R9005
- 2.4Item no. 70131Air duct
- 2.5Item no. 70132Air duct glass
- 2.6Item no. 70077Acrylic compensator
- 2.6Item no. 70140Acrylic compensator
- 2.7Item no. 70078M6 plastic screw top
- 2.7Item no. 70079M6 plastic screw bottom
- 2.8Item no. 70115Inner side panel
- 2.9Item no. 70141Price holder profile
- 2.10Item no. 54867Shelf Clip
- 2.11Item no. 70142Sliding covers R9005 Top
- 2.11Item no. 70143Sliding covers R9005 Bottom
- 2.12Item no. 70081Handle Transparent
- 2.13Item no. 70082Acrylic stop
- 3.1Item no. 70144Evaporator
- 3.2Item no. 70145Condenser
- 3.3Item no. 70085Fan motor 12W 120-230V
- 3.4Item no. 70146Compressor
- 3.5Item no. 70087Condenser fan bracket
- 3.6Item no. 70088Fan
- 3.7Item no. 55597Conderser Fan Blade
- 3.8Item no. 54895Filter Drier
- 3.9Item no. 70089Solenoid valve
- 3.10Item no. 70147Condensate tray
- 3.11Item no. 54897Relay
- 3.12Item no. 70091Controller IJF
- 4.1Item no. 70092Corner decoration
- 4.2Item no. 70148Front Panel
- 4.3Item no. 70118Side panel
- 4.4Item no. 70149Back bottom panel
- 4.5Item no. 70150Front bottom panel
- 4.6Item no. 70119Lower right side panel
- 4.7Item no. 70120Lower left side panel
- 4.8Item no. 70096EQ panel
- 4.9Item no. 70151Bumper set
- 5.1Item no. 70097LED lamp - SELF LINSH2 Frontal
- 5.1Item no. 70098Power supply - SELF LINSH2
- 5.1Item no. 70109LED lamp - SELF LINSH2 Frontal
